M-COM Click

Reference number:

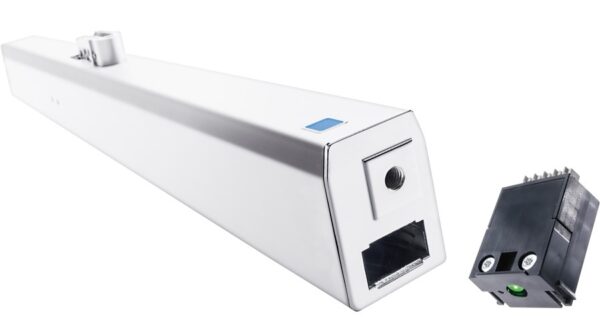

M-COM® Click Configuration module for synchronised multi-drive systems

Mention the desired references


Information technique

Tension de service: 24V DC +/- 20%, (max. 2 Vss)
Consommation électrique: <12 mA
Mode de commande: S12
Type de protection: IP30
Température environnementale: – 5 °C … + 70 °C
Dimensions: 40 x 26 x 15 mm
Raccordement: Pour transmissions par chaîne AUMÜLLER avec connecteur AUMÜLLER-Click.


Able to configurate drive parameters by simple plug-on into the single or last drive of the multi-drive system.
Suitable for 24V- or 230V-drives, but it can only be used on the 24V-side.


Communication module for automatic con” guration and surveillance of max. 4 opening and 2 locking drives version S12 / S3 (software version SW-V2) in synchronised multi-drive systems.


• By using the M-COM® Click 6 single actuators (drives or locks) are linked together in a multi-drive system.
• Whithin seconds, the M-COM® Click links and programmes the synchronized driverunnint mode and one sequentce control, if additional locks are involved. When using 2 locking drives, these run parallel.
• The LED display of the M-COM® Click signals the successful initialization, the number of components installed in the system and – if occurring – malfunctions.
• The use of standard drives in a drive system saves storage costs.
• Subsequent installed or exchanged components can be easily adressed and programmed.


Technical information
